Product Details

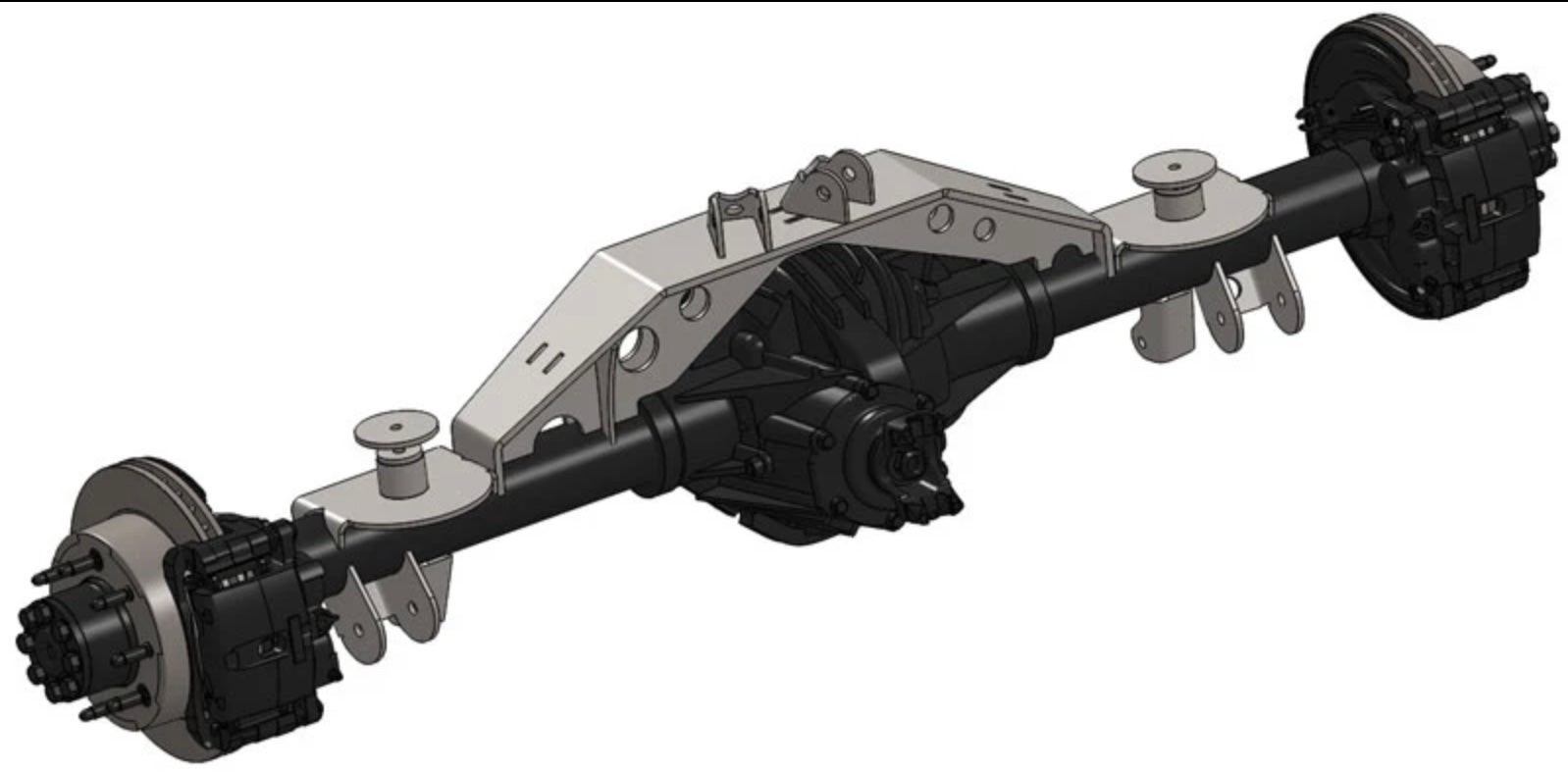

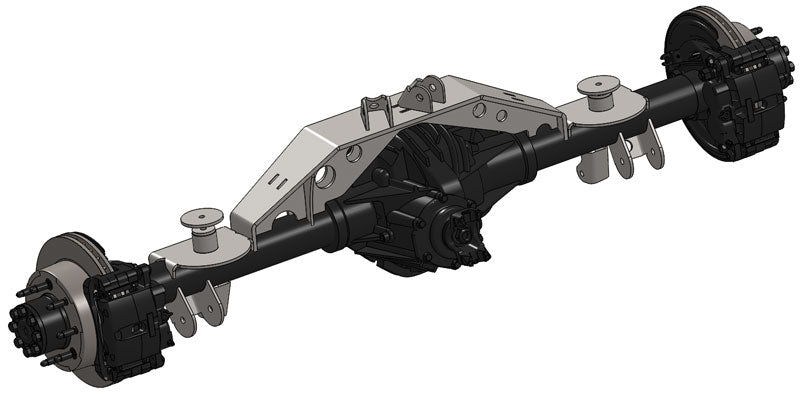

Artec Industries is excited to announce the Triangulated TJ GM 14-bolt Axle Swap Kit. This heavy duty 3/8 inch and 1/4 inch truss is designed to take serious abuse and reinforce your entire axle. The accompanying brackets provide the OEM coil, lower control arm and shock locations, but triangulate the upper control arms which eliminates the need For a track bar. He also offer this Kit with a High Clearance option that raises the LCA and shock brackets above the bottom of the axle tube. The GM 14-bolt rear axle offers huge improvements in every category over the factory Dana 35 and 44.

Details:

• Sold as Kit

• Upper Link Mounting Width: 2.63 inch

• Shock/ Lower Link Position: OEM

• This Kit is a compilation of some of our existing brackets that are sold both individually and with other Kits.

• Some slight modification may be necessary to the brackets For use with the 14-bolt axle and the 14-bolt Modular truss.

• See below For a list of parts and what may need minor trimming.

• This Kit does not include factory Style anti-sway bar mounts.

• The 3rd member on the axle is too large to fit a factory TJ anti-sway bar.

• Aftermarket sway bars for the rear will need to be used.

• This Kit triangulates the Upper Control Arms (UCA) of the TJ meaning you will not be able to use the factory rear UCA brackets on the frame and may need to make new arms themselves.

• See related items below for products that will help you make this change.

• 3/8 inch thick truss top and 1/4 inch thick truss gussets and 1/4 inch thick brackets For much higher strength than the factory bracket and other aftermarket brackets.

• Precision CNC cut and bent For great fitment.

• Includes all the brackets necessary For a complete axle swap including upper and lower control arm mounts, shock mounts, and coil spring mounts.

• Eliminates the track bar by using triangulated upper control arms.

• Not For use with OEM control arms.

• New upper links and frame side brackets will be needed.

• Save hours of installation time. Outer brackets just need to line up to truss, no guessing and measuring involved.

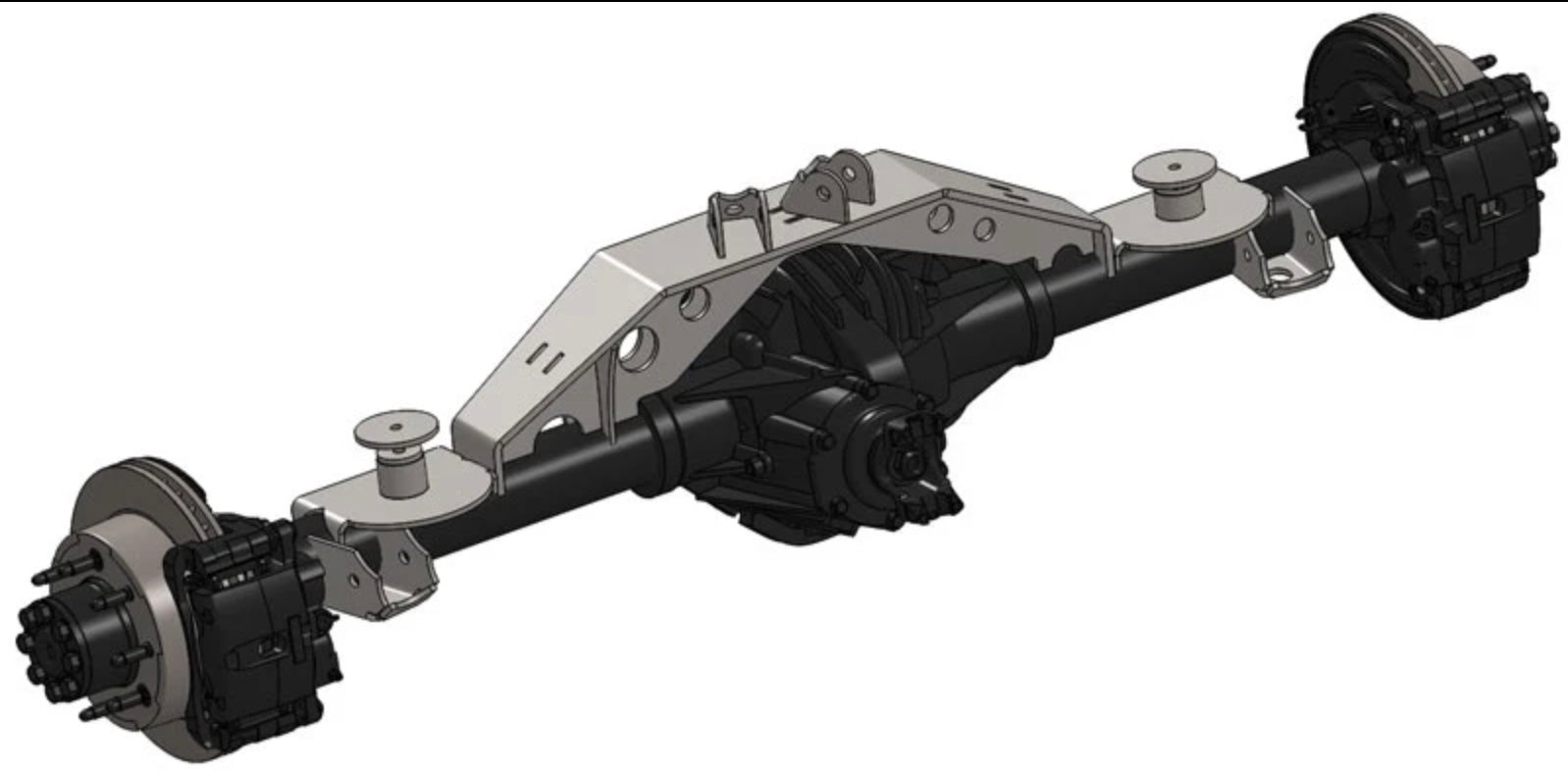

• High-Clearance option provides flat LCA brackets and shock mounts to reduce rock damage. Not For use with OEM control arms.

• High-Clearance Shock mounts flip bolt orientation to perpendicular to axle tube providing more rotation without binding. Upper shock mount relocation may be necessary.

• Overall low profile design means your axle is stronger, sleeker, easier to fit into any vehicle, and less likely to interfere with vehicle components.

• This Kit requires general welding and fabrication skills. Welding should only be done by a competent welder.

• Artec Industries implies no guarantees or warranties and is not liable for improper installation.

• Some grinding and fitment may be required when installing this Kit. Every axle varies slightly and some fabrication may be required.

• Will require brake line relocation to fit.

1997,2006,Jeep,Wrangler,
