Product Details

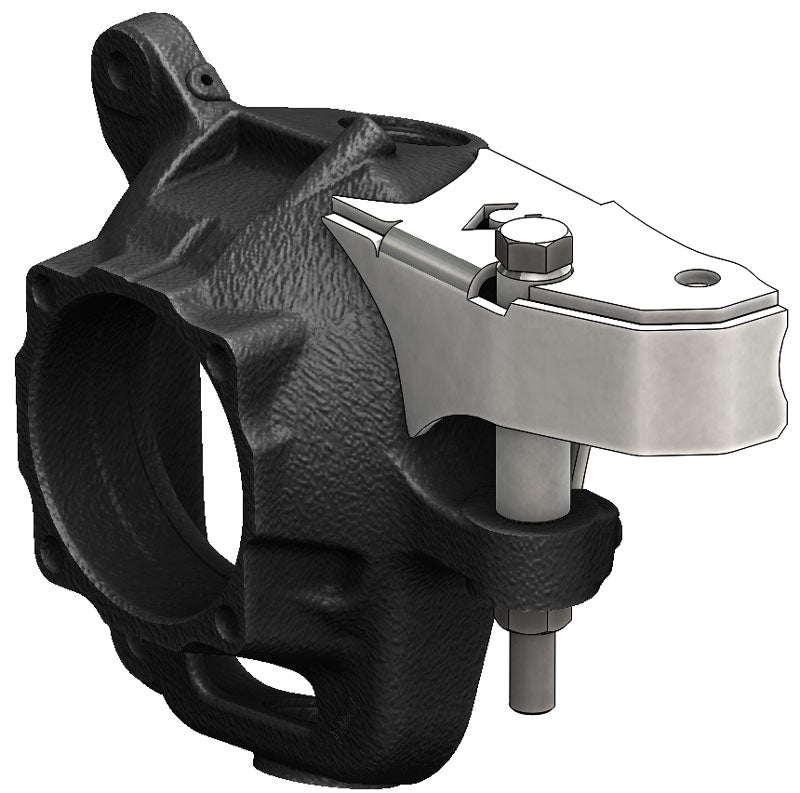

99-04 SuperDuty Knuckle Full Hydro Weld On High Steer Arms (Pair). Affordable weld on arms for the 99-04 SuperDuty Knuckles to help eliminate those swap steering issues.

• Fully fabricated for the best steering geometry and clearances


• Engineered for best alignment of tie rod and hydraulic steering ram, providing maximum strength and longevity


• Best used with our new Superduty 60 Full Hydro Ram Mount.


• Included Knuckle Bolts and tapered spacers for tight fit and increased strength


• Welds directly to factory knuckles (1999-2005 SuperDuty)


• 3/4 inch bolt holes for uncompromising steering strength


• Precision Laser Cut from 1/4 inch steel and CNC Bent for accurate fitment


• Minimal modification to OEM knuckle needed


• Sold in pairs only. Includes knuckle bolt kits (8 inch long bolt, sleeve and stover locking nut) and all internal gusseting.


• Rod end bolts not included.

Knuckle holes will need to be drilled out to 3/4 inch. Casting remnants on front of knuckle will need to be ground down. Knuckles from different year are slightly different so we've etched a trim line on the laser cut part that will need to be trimmed off.
Requires welding and minor fabrication. We highly recommend this kit only be installed by a competent welder.
