Product Details

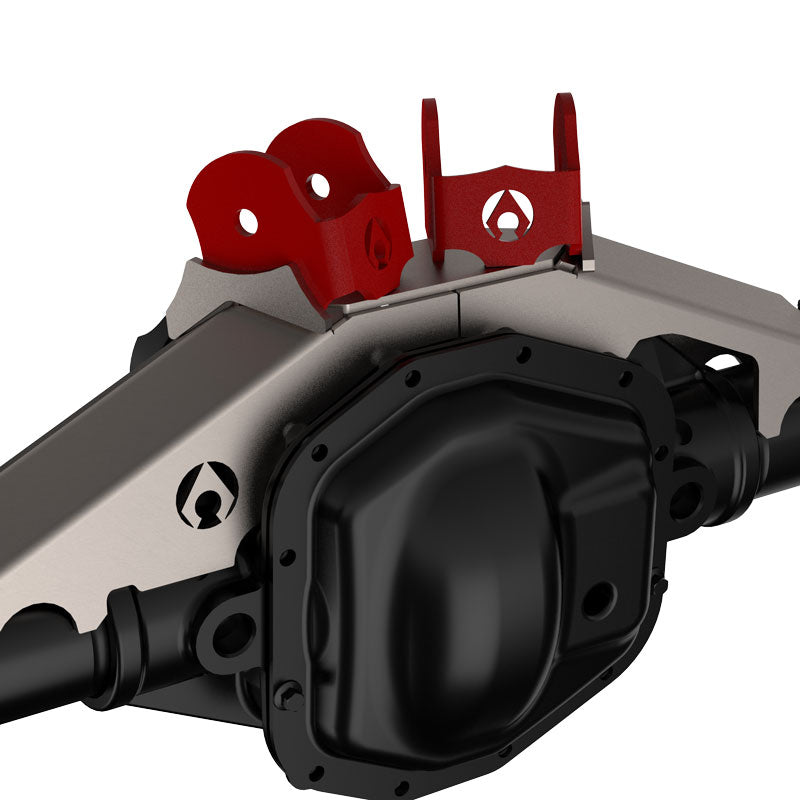

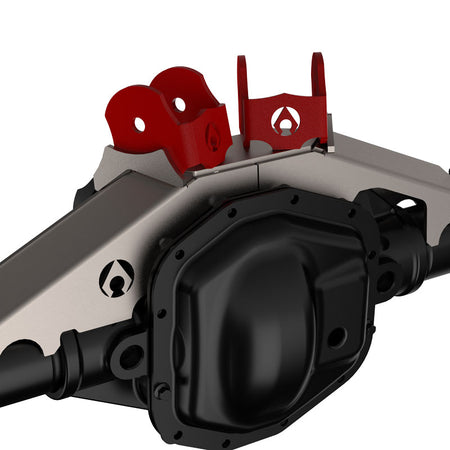

These Link Mounts are designed to mount on a flat surface such as a truss. With the optional APEX Gusset, these will fit perfectly on the new APEX rear Trusses. The APEX gussets allows for your UCA brackets to be mounted at various angles and widths so you can build your 4-link the way it needs to be and be assured the gusset will allow full contact with the bracket and truss.

These brackets are CNC cut and bent from 1/4 inch thick mild steel. The bend strengthens the mount so no additional reinforcement is needed. Set at 2.63 inch inner widths for the most common joints. Hole size 9/16 inch but you can drill it out to up 1.0 inch if you'd like.
Features:

• APEX Truss Upper Link Mounts Pair


• With APEX Gussets (2)


• Material: 1/4 inch mild steel


• Bolt Hole Size: 9/16 inch


• Fits: 1997-2006 Jeep TJ and 1997-2006 Jeep LJ


• Sold As: Pair

1997,2004,Jeep,Wrangler,Sahara|1997,2006,Jeep,Wrangler,SE|1997,2006,Jeep,Wrangler,Sport|2002,2006,Jeep,Wrangler,X|2003,2006,Jeep,Wrangler,Rubicon|2004,2006,Jeep,Wrangler,Unlimited|2005,2006,Jeep,Wrangler,Unlimited Rubicon|2006,2006,Jeep,Wrangler,65th Anniversary Edition
