Product Details

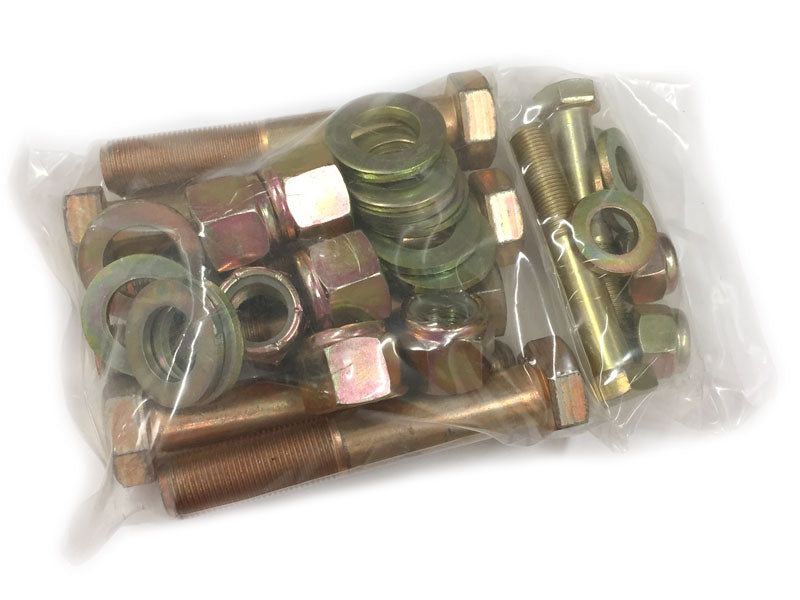

3-Link Hardware Assembly for 7/8 Inch and 1.25 Inch Rod Ends. All the hardware you need to mount your 3-link kit with 7/8 Inch and 1.25 Inch Rod Ends. Please refer to the table below to ensure you are getting the correct hardware to match your kit.

Note: Our Easy 3-link kits include spacers for the 1.25 Inch Rod Ends that have a 3/4 Inch hole but some of the brackets in the kits have a 9/16 Inch hole and will need to be drilled to 3/4 Inch to match this hardware.
Quantity Hardware Description

• 6 3/4 - 16 x 4.5 Inch Grade 8 Hex Head Cap Screw Yellow Zinc


• 6 3/4 - 16 Grade 8 Nylon Insert Hex Lock Nut Yellow Zinc


• 2 9/16 - 18 Grade 8 Nylon Insert Hex Lock Nut Yellow Zinc


• 12 3/4 Inch Narrow Flat Washer Yellow Zinc


• 4 9/16 Inch Narrow Flat Washer Yellow Zinc


• 2 9/16 - 18 x 3.5 Inch Grade 8 Hex Head Cap Screw Yellow Zinc
