Product Details

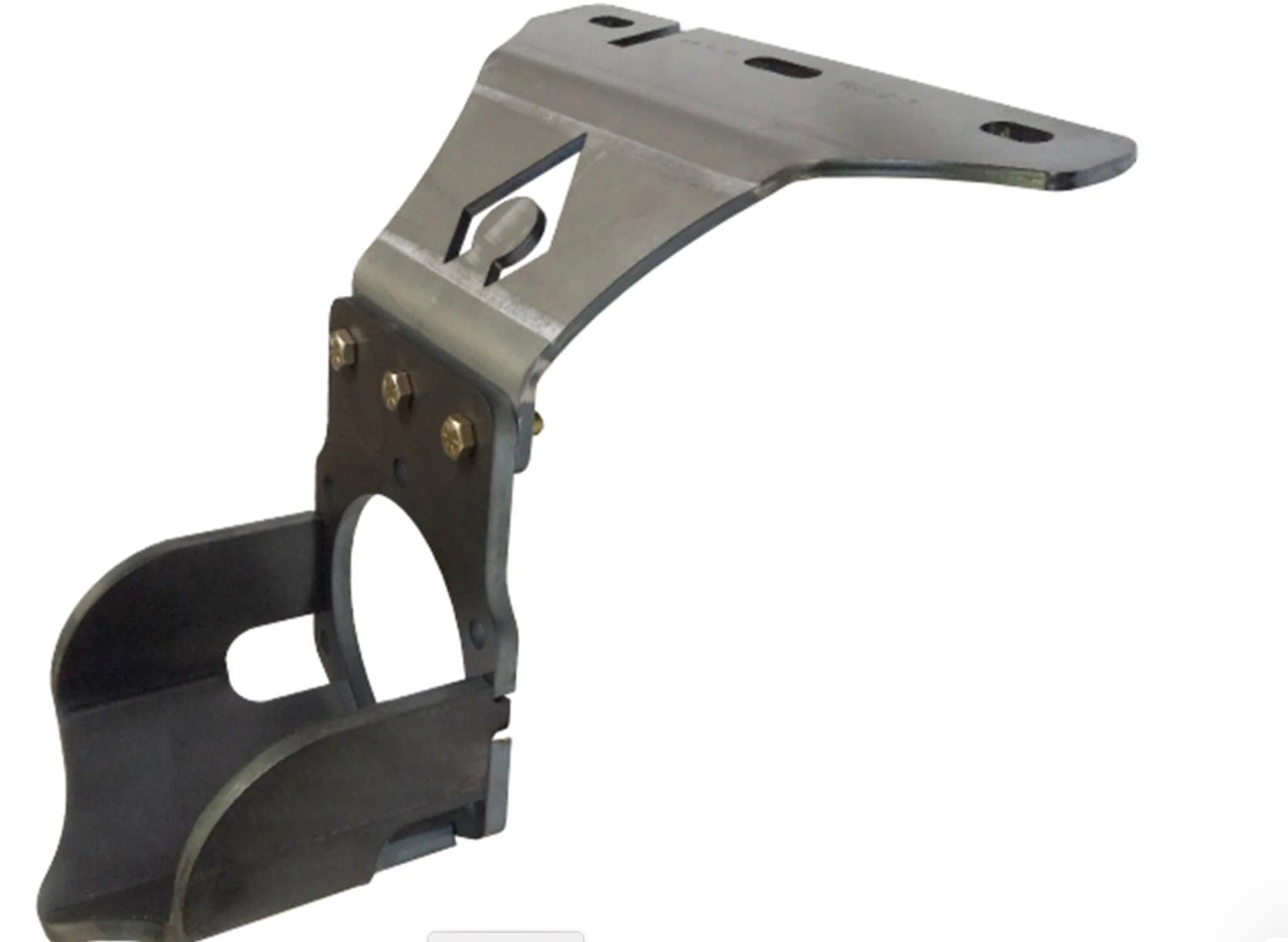

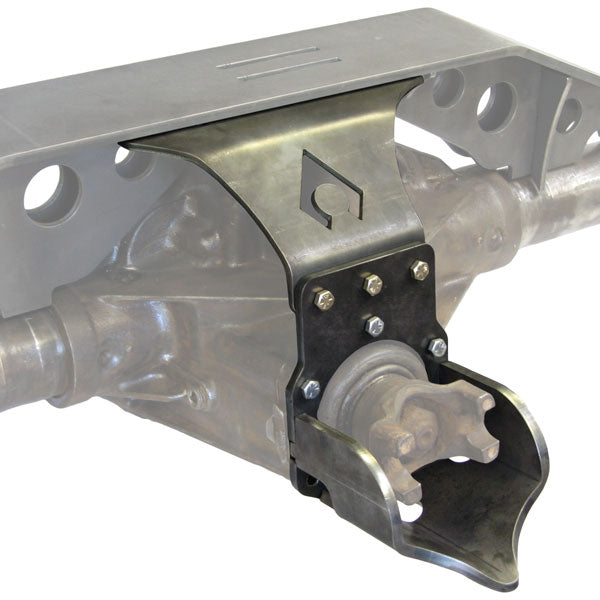

Artec Industries 14 bolt Pinion Guard is designed to keep your vulnerable pinion out of the rocks and Inch one piece. CNC cut from 3/8 inch thick mild steel, this guard is meant to take the worst you and the rocks can dish out. Included bridge to connect to your Artec 14 bolt truss. Bridge is CNC cut and formed from 1/4 inch thick mild steel and adds rigidity to your existing truss. Bridge bolts on to pinion guard and welds to truss.

Features:

• Sold as Each

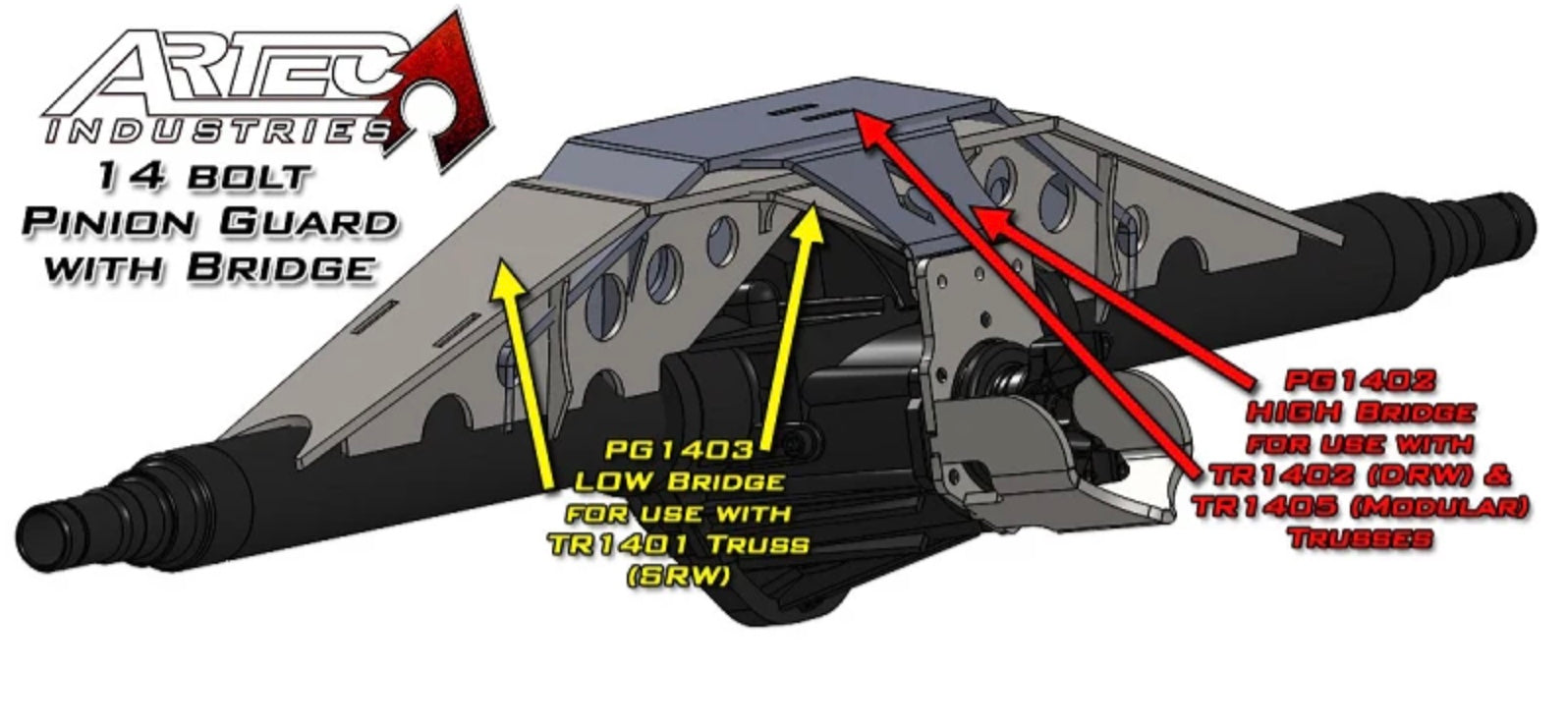

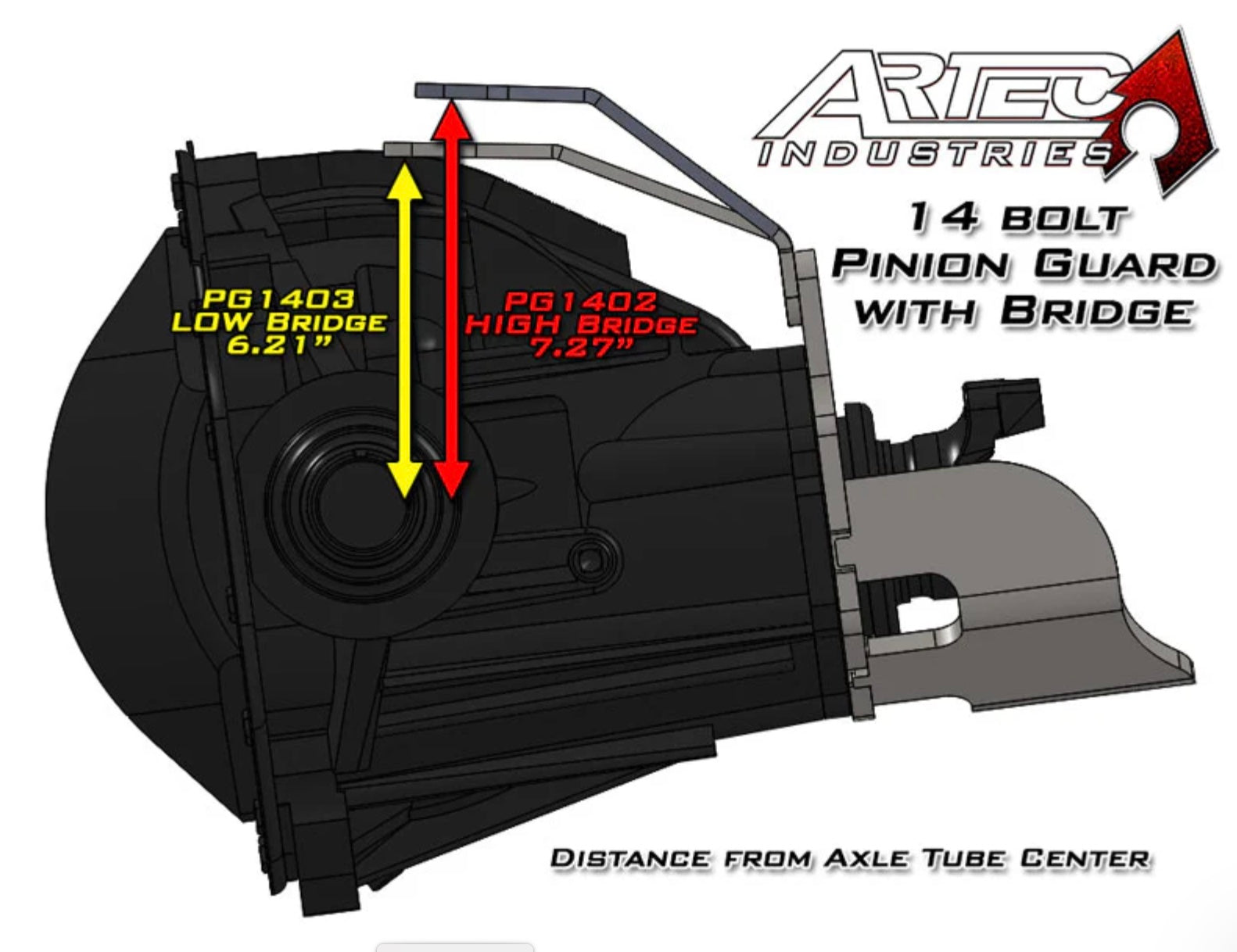

• There are 2 options For this item, the High - PG1402 and the Low - PG1403. The High version is compatible with the TR1402 and TR1405 Rear Trusses and the Low version is compatible with the TR1401 Rear Truss. See inset image above for detail of different options

• Includes 3/8 inch grade 8 hardware.

• Requires welding from a competent welder.

• Notes : TRIMMING ON THE BRIDGE MAY BE NECESSARY DEPENDING ON THE PINION ANGLE YOU CHOOSE FOR THE TRUSS AND WHAT TRUSS YOU USE.
