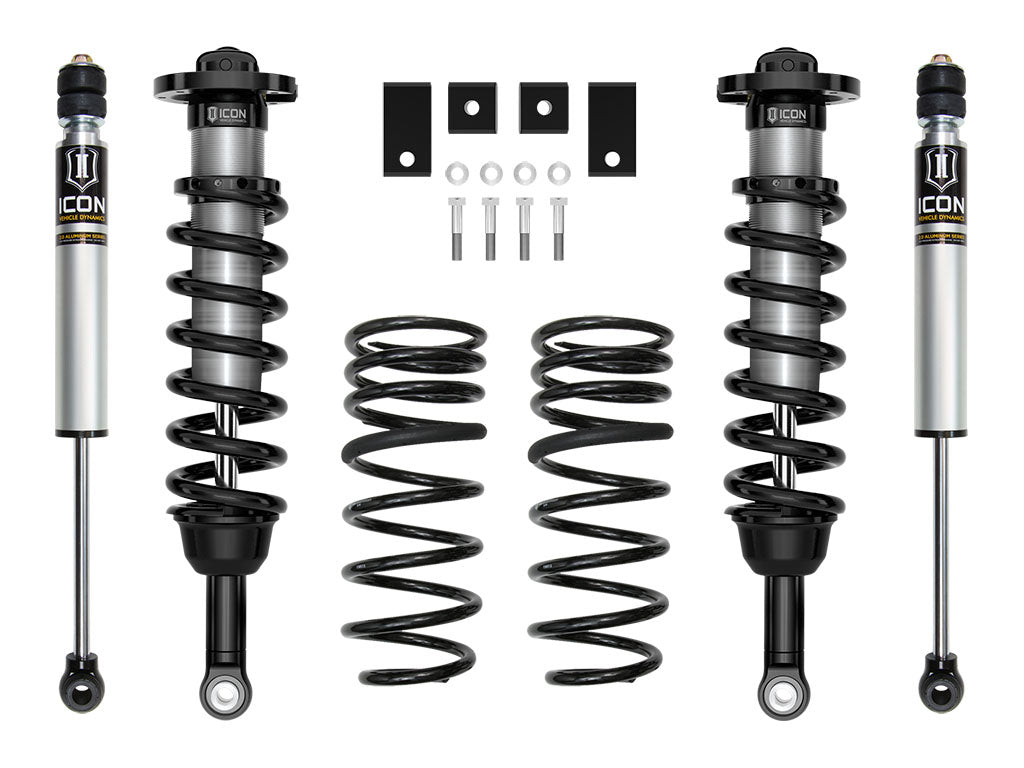

ICON 2023-2024 Toyota Sequoia 3-3.75" Lift Stage 3 Suspension System TRD

Product Details

Rounding out the Stage 3 suspension system are V.S. 2.0 Aluminum Series rear shocks specially tailored for the 2023-2024 Sequoia. The 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Their pairing with the ICON 2.5 Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Sequoia.

• Vehicle specific design for 2023-2024 Toyota Sequoia
• 2.5 Series front coilovers with internal reservoirs for superior damping and vehicle control
• Adjustable front ride heights from 3-3.75” of front lift over stock when used with stock UCAs
• Included sway bar drop brackets reduce bind in OE sway bar links
• Allows for full wheel travel without overstressing OE components
• Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
• Dual rate rear coil springs improve performance and ride quality while providing 2" or 4" of rear lift, depending on the vehicle's stock suspension package

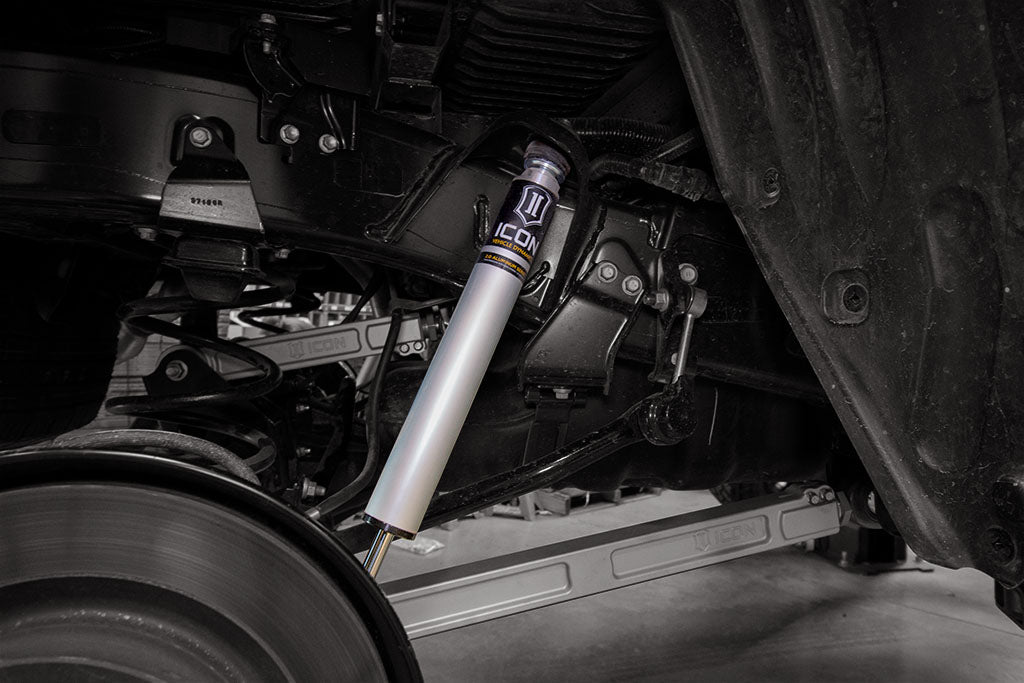

• 2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
• All ICON shock absorbers are fully rebuildable and re-tunable

Vehicle Specific

• ICON 23-24 SEQUOIA 3-3.75" STAGE 3 SUSPENSION SYSTEM

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103432175
• 30: Yes
• 2064: Steel
• 2371: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 5520: 3.75
• 7325: 2
• 7326: 2
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Active or Passive Suspension: Passive
• Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
• Adjustable Compression: No
• Adjustable Damping: No
• Adjustable Rebound: No
• California Prop 65 Warning: Yes
• Front Spring Rate Type: Linear
• Maximum Lift Front: 3.75
• Maximum Lift Rear: 4
• Minimum Lift Front: 3
• OEM Wheels & Tires Fitment: Yes
• Rear Spring Rate Type: Progressive Dual Rate
• Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
• Reservoir Style: Internal

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 31.0000 x 13.0000 x 7.0000 inches
• Weight: 102.0000 POUNDS
