Product Details

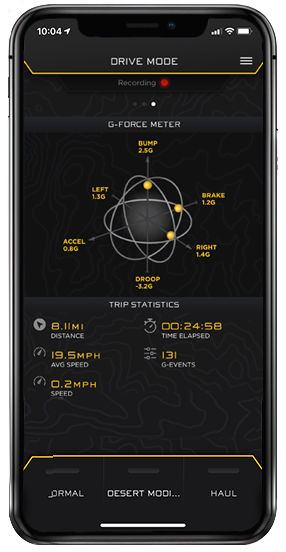

The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly. When paired with ICON 2.5 or 3.0 Series CDEV rear shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Sequoia TRD Pro.- Increased wheel travel and improved ride quality over stock
- FK rod end bearings for extended longevity and minimal deflection
- Fully rebuildable and re-tunable
- Vehicle specific tuned for superior shock damping and control
- Specifically designed shock lengths for compatibility with Sequoia TRD Pro's stock front upper control arms
- Adjustable ride height offers 1-2.5" of front lift over stock on Sequoia TRD Pro
- Remote reservoirs maintain cooler operating temperatures during extended off-road use
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- ICON engineered coil springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts

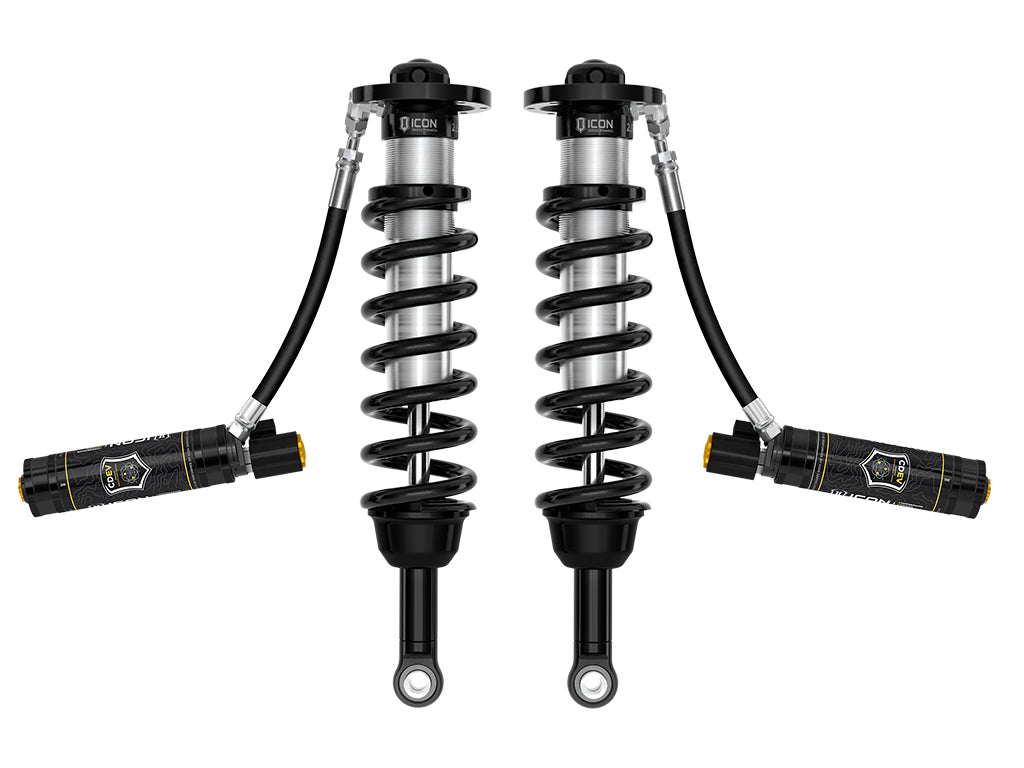

- ICON 23-24 SEQUOIA TRD PRO 2.5 VS RR CDEV COILOVER KIT
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103432168
- 48: Eyelet
- 49: Mounting Plate
- 50: No
- 51: Yes
- 52: 2.5
- 408: Center of Eylet
- 409: Top of Upper Mount Plate
- 2064: Steel
- 2329: Steel
- 2917: Yes
- 3085: Single Tube
- 3390: Performance
- 5126: Silver
- 7233: No
- 8703: No
- 9476: Yes
- 10526: Digressive
- 10527: Yes
- 10529: No
- 10530: Active
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
- Adjustable Damping: NO
- California Prop 65 Warning: Yes
- Coil Over Springs Included: Yes
- Cylinder Finish: Cadmium Plated
- Damping Adjustment Type: Electronic
- Damping Type: Oil
- Dust Shield: No
- Material: Aluminum
- Maximum Lift: 2.5
- Minimum Lift: 1
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
- Recommended Aftermarket Wheels: 17x8.5" w/ 5.75” Backspace / 25mm Offset
- Reservoir Style: Remote
- Service Parts: 252010 - 2.5 IFP REBUILD KIT
- Shaft Diameter: 0.875
- Spring Color: Black
- Spring Rate Type: Linear
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 27.0000 x 12.0000 x 8.0000 inches
- Weight: 61.0000 POUNDS
